L6X® – carbon composite type 3 cylinders

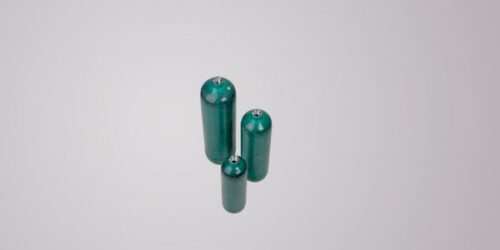

Each ultra-lightweight L6X carbon composite oxygen cylinder has an inner liner made from Luxfer’s proprietary L6X alloy that is strengthened with an aerospace-grade carbon-fiber wrapping that completely surrounds the liner.

These extremely durable cylinders initially gained favor with firefighters who use them in self-contained breathing apparatus (SCBA). These cylinders are now also used by paramedics and other emergency first-responders. Because of their much lighter weight, compact size, higher capacity and excellent portability, Luxfer full-wrap cylinders are becoming popular in emergency and pre-hospital care, as well as for oxygen therapy, in which reduced weight and increased filling capacity provide significant advantages to ambulatory patients.

Medical - L6X Composite Type 3 TPED [EU]

Metric Imperial

Part number	Water volume (l)	Service pressure (bar)	Diameter (mm)	Length (mm)	Weight (kg)	Oxygen capacity (l)	Thread size	Service life (years)
M10J	1	300	86	291	0.85	305.0	17E	NLL
M19J	2	300	101	386	1.45	611.8	17E	NLL

Part number	Water volume (in³)	Service pressure (psi)	Diameter (in)	Length (in)	Weight (lb)	Oxygen capacity (ft³)	Thread size	Service life (years)
M10J	61.0	4351	3.4	11.5	1.9	10.8	17E	NLL
M19J	122.0	4351	4.0	15.2	3.2	21.6	17E	NLL

Medical - L6X Composite Type 3 [NA]

Metric Imperial

Part Number	Approval	Service Pressure (bar)	Diameter (mm)	Length (mm)	Weight (kg)	Water Volume (l)	Oxygen Capacity (l)	Service Life (years)	Thread Size
M06D	DOT/TC	207	84	252	0.7	0.8	181	15	0.750-16 UNF
M09A	EN/DOT	207	101	233	0.9	1.1	242	15	0.625-18UNF-2B
M09B	DOT/KHK	207	84	310	0.8	1.1	244	15	0.750-16 UNF
M15A	EN/DOT/TC	207	102	373	1.3	2	436	15	0.750-16 UNF
M22A	DOT/TC	207	114	394	1.5	2.8	612	15	0.750-16 UNF-2B
M24A	DOT/TC	207	114	441	2	3.1	682	15	0.750-16 UNF-2B
M66A	DOT/TC	207	173	526	4.2	8.5	1869	15	0.750-16 UNF-2B

Part Number	Approval	Service Pressure (psi)	Diameter (in)	Length (in)	Weight (lb)	Water Volume (in³)	Oxygen Capacity (ft³)	Service Life (years)	Thread size
M06D	DOT/TC	3000	3.3	9.9	1.5	51	6.4	15	0.750-16 UNF
M09A	EN/DOT	3000	3.96	9.17	1.8	68	8.5	15	0.625-18UNF-2B
M09B	DOT/KHK	3000	3.3	12.2	1.7	68	8.6	15	0.750-16 UNF
M15A	EN/DOT/TC	3000	4	14.7	2.9	122	15.4	15	0.750-16 UNF
M22A	DOT/TC	3000	4.5	15.5	3.3	171	21.6	15	0.750-16 UNF-2B
M24A	DOT/TC	3000	4.5	17.4	4.3	191	24.1	15	0.750-16 UNF-2B
M66A	DOT/TC	3000	6.8	20.7	9.3	521	66	15	0.750-16 UNF-2B
