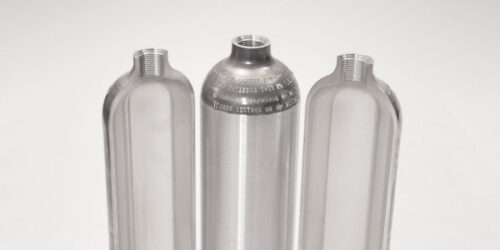

Calibration Aluminum Type 1 Cylinders

Luxfer’s low-pressure cylinders for calibration gases are ideal for the storage and transport of calibration gases.

Using a proprietary aluminum alloy and manufacturing process, Luxfer has developed an internal finish that has dramatically improved upon the standard cylinder package. This internal surface results in greater stability and longer shelf life for a complete range of gases, including the more challenging gas blends.

Calibration Gas Cylinders L6X [EU]

Metric SAE

Part Number	Standard	Water Volume (l)	Service Pressure (bar)	Diameter (mm)	Length (mm)	Weight (kg)	Thread Size
A950/1/I	TPED/DOT	0.85	90	75	267.5	0.495	1" x 14 UNS
A981/1/I	TPED/DOT	1.7	70	90	346	0.8	1" x 14 UNS
A955/1/l	TPED/DOT	1.6	90	90	346	1.05	1" x 14 UNS

Part Number	Standard	Water volume (in³)	Service Pressure (psi)	Diameter (in)	Length (in)	Weight (lb)	Thread Size
A950/1/I	TPED/DOT	51.9	1305	3	10.5	1.1	1" x 14 UNS
A981/1/I	TPED/DOT	103.7	1015	3.5	13.6	1.8	1" x 14 UNS
A955/1/l	TPED/DOT	97.6	1305	3.5	13.6	2.3	1" x 14 UNS

Support and downloads

Calibration Gas Cylinders Spec Sheet

Luxfer Cylinder Cages
