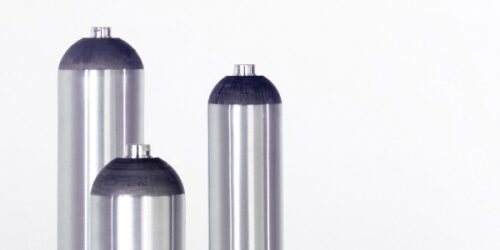

L6X® – aluminum type 1 cylinders

L6X® aluminum specialty gas cylinders – Luxfer’s specialty gas cylinders are manufactured from our exclusive proprietary formula of 6061 alloy.

Luxfer cylinders are designed to handle a huge range of rare, volatile, speciality and high-purity gases, including gases used in the manufacture of semiconductors and other electronic products, in which maintaining gas purity and stability is essential. Cylinders are also available for the containment of calibration gases, as well as a wide variety of other industrial applications.

Spec Gas - L6X [EU]

Metric Imperial

Part Number	Specification	Service Pressure (bar)	Test Pressure (bar)	Diameter (mm)	Length (mm)	Weight (kg)	Water Volume (l)	Thread Size
A953/1/I	TPED/DOT	200	300	70	230	0.72	0.5	0.750" x 16 UNF
A8341Q	TPED	200	300	102	390	2.7	2	25E
P3395I	TPED	200	300	117	430	3.85	2.8	25E
P2778Z	TPED	200	300	152	460	7.02	5	25E
P3137Z	TPED	200	300	152	475	7.1	5	25E
P3332I	TPED/DOT	200	300	140	530	6.63	5	25E
P3392I	TPED/DOT	153	230	176	397	6.4	5.9	0.750" x 14 NGT
P3248N	TPED	166	250	176	585	9.5	9.4	25E
P2804Z	TPED	200	300	176	655	12.91	10	25E
P3338N	TPED	200	300	176	660	12.91	10	25E
P3340I	TPED/DOT	200	300	140	965	11.59	10	25E
P2810Z	TPED	200	300	140	965	11.5	10	25E
P2804YZ	TPED	180	300	176	655	12.91	10	25E
P3325I	TPED	200	300	176	715	13.9	11	25E
P3056Z	TPED	200	300	204	955	24.36	20	25E
P3356I	TPED	165	250	218	920	22.5	23.6	25E
P2862Z	TPED	200	300	250	1500	57.06	50	25E
P2806Z	TPED	200	300	250	1500	57.06	50	25E

Part Number	Specification	Service Pressure (psi)	Test Pressure (psi)	Diameter (in)	Length (in)	Weight (kg)	Water volume (in³)	Thread Size
A953/1/I	TPED	2900.8	4351.1	2.8	18.1	1.6	30.5	25E
A8341Q	TPED/DOT	2900.8	4351.1	4	15.6	6	122	0.750" x 14 NGT
P3299BY	TPED	2016	3364.9	8	18.7	48.5	1800.2	25E
P3395I	TPED	2900.8	4351.1	4.6	20.9	8.5	170.9	25E
P2778Z	TPED	2900.8	4351.1	6	51.4	15.5	305.1	25E
P3286BY	TPED	2219.1	3698.5	6.9	15.6	14.1	360	25E
P3137Z	TPED	2900.8	4351.1	6	15.6	15.7	305.1	25E
P3332I	TPED	2900.8	4351.1	5.5	23	14.6	305.1	25E
P3312BY	TPED/DOT	2219.1	3698.5	9.8	25.8	84.7	2831.5	25E
P3296BY	TPED	2219.1	3698.5	6.9	26	14.1	360	25E
P3392I	TPED/DOT	2219.1	3335.9	6.9	38	14.1	360	0.750" x 16 UNF
P3248N	TPED	2407.6	3625.9	6.9	38	20.9	573.6	25E
P2804Z	TPED	2900.8	4351.1	6.9	25.8	28.5	610.2	25E
P3338N	TPED	2900.8	4351.1	6.9	47.9	28.5	610.2	25E
P3340I	TPED/DOT	2900.8	4351.1	5.5	28.1	25.6	610.2	25E
P2810Z	TPED	2900.8	4351.1	5.5	51.4	25.4	610.2	25E
P2804YZ	TPED	2610.7	4351.1	6.9	37.6	28.5	610.2	25E
P3316BY	TPED	2016	3364.9	8	36.2	47.1	1800.2	25E
